안드로이드 Retrofit2+RecyclerView 1-2 (추가 밀어서 삭제,편집 )

안드로이드 Retrofit2+RecyclerView 1-1에서는 영화진흥위원회에서 영화정보를 리스트형식으로 보이게 했습니다.

2020/03/22 - [안드로이드/개발자 일상] - 안드로이드 Retrofit2+RecyclerView 1-1(영화진흥위원회 오픈 API 이용)

(링크 참조 바랍니다.)



위 예제에서 추가하여 이제 밀어서 삭제,편집을 선택 할 수있도록 해보겠습니다.

추가할 것들

interface MyButtonClickListener

ItemTouchHelper.SimpleCallback를 상속 받은 abstract class MySwipeHelper

그리고 MainActivity에 사용하면 됩니다.

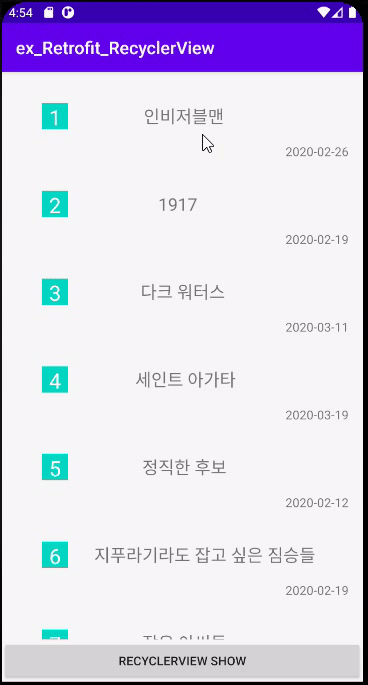

<실행 화면> 영화 목록을 옆으로 드래그 했을때, 선택을 할 수 있습니다.

---

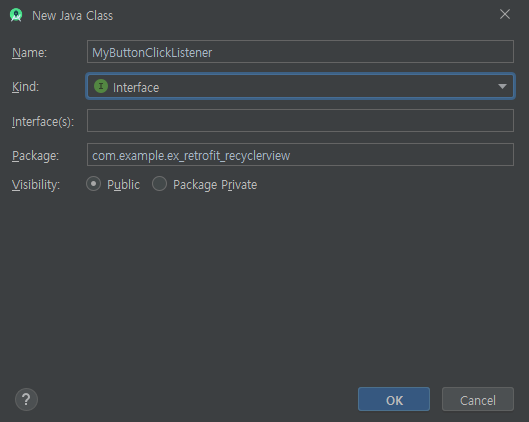

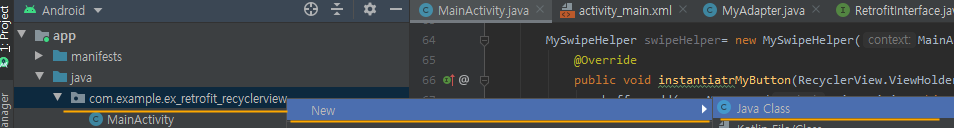

interface를 만들어 줍니다.

MyButtonClickListener.java

package com.example.ex_retrofit_recyclerview;

public interface MyButtonClickListener {
    void onClick(int pos);
}

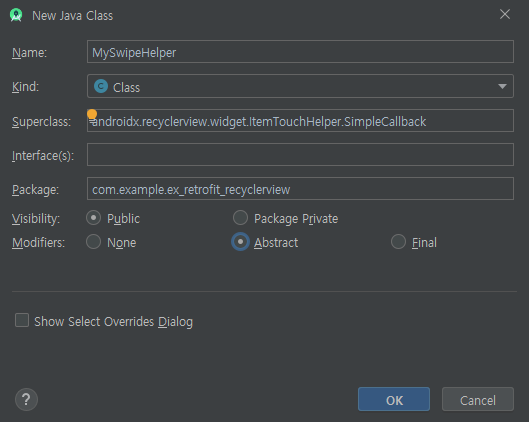

이제 MySwipeHelper 클래스를 만들어 줍니다.

MySwipeHelper.java

package com.example.ex_retrofit_recyclerview;

import android.content.Context;
import android.content.res.Resources;
import android.graphics.Bitmap;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Point;
import android.graphics.Rect;
import android.graphics.RectF;
import android.graphics.drawable.BitmapDrawable;
import android.graphics.drawable.Drawable;
import android.view.GestureDetector;
import android.view.MotionEvent;
import android.view.View;

import androidx.annotation.NonNull;
import androidx.core.content.ContextCompat;
import androidx.recyclerview.widget.ItemTouchHelper;
import androidx.recyclerview.widget.RecyclerView;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.LinkedList;
import java.util.List;
import java.util.Map;
import java.util.Queue;


public abstract class MySwipeHelper extends ItemTouchHelper.SimpleCallback {

    int buttonWidth;
    private RecyclerView recyclerView;
    private List<MyButton> buttonList;
    private GestureDetector gestureDetector;
    private int swipePosition=-1;
    private float swipeThreshold = 0.5f;
    private Map<Integer,List<MyButton>> buttonBuffer;
    private Queue<Integer> removerQueue;
    private  GestureDetector.SimpleOnGestureListener gestureListener= new GestureDetector.SimpleOnGestureListener(){

        @Override
        public boolean onSingleTapUp(MotionEvent e) {
            for(MyButton button:buttonList){
                if(button.onClick(e.getX(),e.getY()))
                    break;
            }
            return super.onSingleTapUp(e);
        }
    };

    private View.OnTouchListener onTouchListener= new View.OnTouchListener() {
        @Override
        public boolean onTouch(View v, MotionEvent motionEvent) {
            if(swipePosition<0) return false;
            Point point =new Point((int)motionEvent.getRawX(),(int)motionEvent.getRawY());

            RecyclerView.ViewHolder swipeViewHolder = recyclerView.findViewHolderForAdapterPosition(swipePosition);
            View swipedItem=swipeViewHolder.itemView;
            Rect rect= new Rect();
            swipedItem.getGlobalVisibleRect(rect);

            if(motionEvent.getAction() == MotionEvent.ACTION_DOWN ||
               motionEvent.getAction() == MotionEvent.ACTION_UP ||
               motionEvent.getAction() == MotionEvent.ACTION_MOVE){

                if (rect.top<point.y && rect.bottom> point.y) gestureDetector.onTouchEvent(motionEvent);
                else {
                    removerQueue.add(swipePosition);
                    swipePosition = -1;
                    recoverSwipedItem();
                }
            }
            return false;
        }
    };

    protected  synchronized void recoverSwipedItem(){
        while (!removerQueue.isEmpty()){
            int pos=removerQueue.poll();
            if(pos> -1) recyclerView.getAdapter().notifyItemChanged(pos);
        }
    }


    public MySwipeHelper(Context context, RecyclerView recyclerView, int buttonWidth) {
        super(0,ItemTouchHelper.LEFT);
        this.recyclerView= recyclerView;
        this.buttonList= new ArrayList<>();
        this.gestureDetector= new GestureDetector(context,gestureListener);
        this.recyclerView.setOnTouchListener(onTouchListener);
        this.buttonBuffer= new HashMap<>();
        this.buttonWidth= buttonWidth;

        removerQueue= new LinkedList<Integer>(){
            @Override
            public boolean add(Integer integer) {
               if(contains(integer)) return false;
               else return super.add(integer);
            }
        };

        attachSwipe();

    }// MySwipeHelper*()..

    private void attachSwipe() {
        ItemTouchHelper itemTouchHelper=new ItemTouchHelper(this);
        itemTouchHelper.attachToRecyclerView(recyclerView);
    }

    public class MyButton{
        private String text;
        private int imageResId,textSize, color,pos;
        private RectF clickRegion;
        private MyButtonClickListener listener;
        private Context context;
        private Resources resources;

        public MyButton(Context context, String text,  int textSize,int imageResId, int color, MyButtonClickListener listener) {
            this.text = text;
            this.imageResId = imageResId;
            this.textSize = textSize;
            this.color = color;

            this.listener = listener;
            this.context = context;
            resources= context.getResources();
        }// MyButton()..

        public boolean onClick(float x, float y){
            if(clickRegion != null && clickRegion.contains(x,y) ){
               listener.onClick(pos);
               return true;
            }
            return false;
        }// onClick()..

        public void onDraw(Canvas c, RectF rectF, int pos){
            Paint p = new Paint();
            p.setColor(color);
            c.drawRect(rectF,p);
            //text
            p.setColor(Color.WHITE);
            p.setTextSize(textSize);

            Rect r = new Rect();
            float cHeight= rectF.height();
            float cWidth= rectF.width();
            p.setTextAlign(Paint.Align.LEFT);
            p.getTextBounds(text, 0,text.length(),r);
            float x=0, y=0;
            if(imageResId == 0){
                x=cWidth/2f-r.width()/2f -r.left;
                y=cHeight/2f + r.height()/2f -r.bottom;
                c.drawText(text, rectF.left+x,rectF.top+y,p);
            }else{
                Drawable d = ContextCompat.getDrawable(context,imageResId);
                Bitmap bitmap= drawableToBitmap(d);
                c.drawBitmap(bitmap,(rectF.left+rectF.right)/2,(rectF.top+rectF.bottom)/2,p);
            }
            clickRegion= rectF;
            this.pos=pos;
        }

    }// MyButton class..

    protected  Bitmap drawableToBitmap(Drawable d){
        if(d instanceof BitmapDrawable) return ((BitmapDrawable)d).getBitmap();
        Bitmap  bitmap = Bitmap.createBitmap(d.getIntrinsicWidth(),d.getIntrinsicHeight(), Bitmap.Config.ARGB_8888);
        Canvas canvas= new Canvas(bitmap);
        d.setBounds(0,0,canvas.getWidth(),canvas.getHeight());
        d.draw(canvas);
        return bitmap;
    }

    @Override
    public boolean onMove(@NonNull RecyclerView recyclerView, @NonNull RecyclerView.ViewHolder viewHolder, @NonNull RecyclerView.ViewHolder target) {
        return false;
    }

    @Override
    public void onSwiped(@NonNull RecyclerView.ViewHolder viewHolder, int direction) {
        int pos=viewHolder.getAdapterPosition();
        if(swipePosition != pos) removerQueue.add(swipePosition);
        swipePosition=pos;
        if(buttonBuffer.containsKey(swipePosition)) buttonList = buttonBuffer.get(swipePosition);
        else buttonList.clear();
        buttonBuffer.clear();
        swipeThreshold= 0.5f*buttonList.size()*buttonWidth;
        recoverSwipedItem();
    }

    public float getSwipeThreshold(RecyclerView.ViewHolder viewHolder) {
        return swipeThreshold;
    }

    @Override
    public float getSwipeEscapeVelocity(float defaultValue) {
        return 0.1f*defaultValue;
    }

    @Override
    public float getSwipeVelocityThreshold(float defaultValue) {
        return 5.0f*defaultValue;
    }

    @Override
    public void onChildDraw(@NonNull Canvas c, @NonNull RecyclerView recyclerView, @NonNull RecyclerView.ViewHolder viewHolder, float dX, float dY, int actionState, boolean isCurrentlyActive) {
       int pos= viewHolder.getAdapterPosition();
       float translationX =dX;
       View itemView= viewHolder.itemView;
       if (pos<0){
           swipePosition = pos;
           return;
       }
       if (actionState == ItemTouchHelper.ACTION_STATE_SWIPE){
           if(dX<0){
               List<MyButton> buffer= new ArrayList<>();
               if(!buttonBuffer.containsKey(pos)){
                   instantiatrMyButton(viewHolder,buffer);
                   buttonBuffer.put(pos,buffer);
               }else{
                   buffer = buttonBuffer.get(pos);
               }
               translationX=dX*buffer.size()*buttonWidth / itemView.getWidth();
               drawButton(c,itemView,buffer,pos,translationX);
           }
       }
       super.onChildDraw(c,recyclerView,viewHolder,translationX,dY,actionState,isCurrentlyActive);
    }

    private void drawButton(Canvas c, View itemView, List<MyButton> buffer, int pos, float translationX) {
        float right = itemView.getRight();
        float dButtonWidth = -1*translationX / buffer.size();
        for(MyButton button:buffer){
            float left= right - dButtonWidth;
            button.onDraw(c,new RectF(left,itemView.getTop(),right,itemView.getBottom()),pos);
            right=left;
        }
    }

    public abstract void instantiatrMyButton(RecyclerView.ViewHolder viewHolder, List<MyButton> buffer) ;
}// MySwipeHelper class..

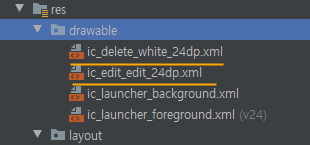

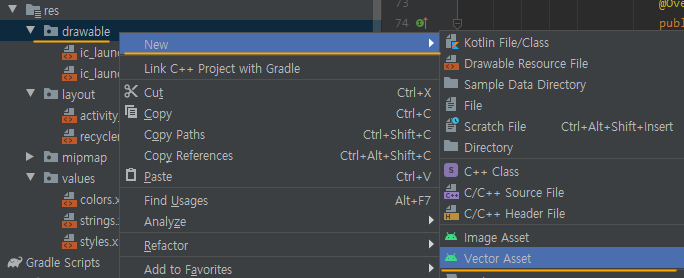

아이콘을 미리 추가 합니다.

이제 MainActivity에서 사용만 하면 됩니다.

( 기존 코드에서 63번줄 ~ 93번줄만 추가했습니다. )

package com.example.ex_retrofit_recyclerview;

import androidx.appcompat.app.AppCompatActivity;
import androidx.recyclerview.widget.RecyclerView;

import android.graphics.Color;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Toast;

import java.util.ArrayList;
import java.util.List;
import java.util.Map;

import retrofit2.Call;
import retrofit2.Callback;
import retrofit2.Response;
import retrofit2.Retrofit;
import retrofit2.converter.gson.GsonConverterFactory;

public class MainActivity extends AppCompatActivity {

    private RecyclerView recyclerView;
    private RecyclerView.Adapter mAdapter;

    String baseUrl = "http://www.kobis.or.kr";
    String API_KEY = "영화진흥위원회에서 발급 받은 Key를 넣어주세요";

    Retrofit retrofit;

    Map<String,Object> boxOfficeResult;
    ArrayList<Map<String, Object>> jsonList;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        recyclerView=findViewById(R.id.rv_recyclerview);

        //Retrofit 객체생성
        retrofit = new Retrofit.Builder()
                .baseUrl(baseUrl)
                .addConverterFactory(GsonConverterFactory.create())
                .build();
        RetrofitInterface retrofitInterface= retrofit.create(RetrofitInterface.class);

        retrofitInterface.getBoxOffice(API_KEY,"20200319").enqueue(new Callback<Map<String, Object>>() {
            @Override
            public void onResponse(Call<Map<String, Object>> call, Response<Map<String, Object>> response) {

               boxOfficeResult= (Map<String, Object>) response.body().get("boxOfficeResult");
               jsonList = (ArrayList) boxOfficeResult.get("dailyBoxOfficeList");
                mAdapter=new MyAdapter(jsonList);
            }
            @Override
            public void onFailure(Call<Map<String, Object>> call, Throwable t) {

            }
        });

        MySwipeHelper swipeHelper= new MySwipeHelper(MainActivity.this,recyclerView,300) {
            @Override
            public void instantiatrMyButton(RecyclerView.ViewHolder viewHolder, List<MySwipeHelper.MyButton> buffer) {
                buffer.add(new MyButton(MainActivity.this,
                        "Delete",
                        30,
                        R.drawable.ic_delete_black_24dp,
                        Color.parseColor("#FF3C30"),
                        new MyButtonClickListener() {
                            @Override
                            public void onClick(int pos) {
                                Toast.makeText(MainActivity.this, "Delete click", Toast.LENGTH_SHORT).show();
                                Log.d("TAG",viewHolder.getAdapterPosition()+"");
                                jsonList.remove(viewHolder.getAdapterPosition());                // 해당 항목 삭제
                                mAdapter.notifyItemRemoved(viewHolder.getAdapterPosition());    // Adapter에 알려주기.
                            }
                        }));
                buffer.add(new MyButton(MainActivity.this,
                        "Update",
                        30,
                        R.drawable.ic_edit_white_24dp,
                        Color.parseColor("#03DAC5"),
                        new MyButtonClickListener() {
                            @Override
                            public void onClick(int pos) {
                                Toast.makeText(MainActivity.this, "edit click", Toast.LENGTH_SHORT).show();
                                //TODO: 편집할 코드
                            }
                        }));
            }
        };// swipeHelper

    }// onCreate()..

    public void click_btn(View view) {

        recyclerView.setAdapter(mAdapter);
    }

}// MainActivity class..


<실행 화면>
